A broken irrigation pipe can turn a healthy lawn into a costly headache. If you’re wondering how deep irrigation pipes should be buried in Ohio, the short answer is that most residential irrigation pipes are installed 8 to 12 inches below the ground, while some main lines may be buried deeper depending on the property and system design.
Getting the depth right matters. Pipes that are too shallow are more vulnerable to damage from landscaping, aeration, and seasonal weather changes. Pipes that are buried too deeply can make repairs more difficult and increase installation costs. Understanding the proper depth can help protect your irrigation system and keep your lawn looking its best.
How Deep Should Irrigation Pipes Be Buried in Ohio? The Short Answer
For most residential irrigation systems in Ohio, lateral sprinkler lines are typically buried 8 to 12 inches deep.
Main irrigation lines are often installed between 12 and 18 inches deep, depending on local conditions and the design of the system. Pipes located beneath driveways, sidewalks, or other high-traffic areas may be buried even deeper for additional protection.
In Cleveland, many irrigation contractors follow these general depth guidelines because they provide a balance between pipe protection, accessibility, and installation efficiency.

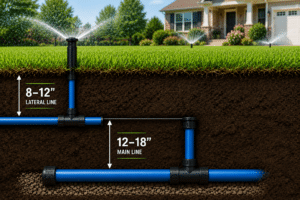

Typical Irrigation Pipe Depths in Cleveland
While every property is different, most residential irrigation systems follow similar depth recommendations.
Irrigation Component Typical Burial Depth
Lateral sprinkler lines 8–12 inches
Main irrigation lines 12–18 inches
Pipes under driveways 18+ inches
Valve boxes Vary by system design
These depths help protect pipes from accidental damage while allowing easier access if repairs are needed in the future.
Why Irrigation Pipes Are Not Buried Below the Frost Line
Many homeowners assume irrigation pipes should be buried below Ohio’s frost line. However, irrigation systems work differently from water service lines.
Since sprinkler systems are seasonal, they are designed to be drained before freezing temperatures arrive. A system that is properly winterized is less likely to experience freeze-related damage, even when pipes are installed at standard depths.
This is why proper seasonal maintenance is often more important than burying irrigation pipes several feet underground. Understanding when to winterize your sprinklers helps prevent costly winter damage.
Factors That Affect Irrigation Pipe Depth
Although 8 to 12 inches is common for residential sprinkler lines, several factors can influence the final depth.
Soil Conditions
Different soil types affect how trenches are dug and how pipes perform over time. Clay soils, sandy soils, and rocky conditions may all require adjustments during installation.
Property Layout
Areas with heavy foot traffic, vehicle traffic, or future landscaping plans may require deeper pipe placement for additional protection.
Local Codes and Requirements
Some municipalities may have specific installation requirements related to irrigation systems, backflow devices, or utility clearances.
Drainage Conditions
Poor drainage can create long-term problems for irrigation systems. Excess water in the soil may contribute to shifting, erosion, or increased wear on underground components caused by poor drainage.
What Happens If Irrigation Pipes Are Too Shallow?
Improper depth can lead to several issues.
Shallow pipes are more likely to be damaged by lawn aeration, fence installations, tree planting, and other landscaping projects. Over time, soil erosion can also expose sections of pipe that were once buried safely underground.
When pipes are damaged, homeowners may experience leaks, low pressure, uneven watering, or higher water bills.
Repairing a damaged underground irrigation line is often more expensive than installing the system correctly from the beginning.
Do Irrigation Systems in Cleveland Need Special Consideration?
Cleveland’s weather can create unique challenges for irrigation systems.
The region experiences freezing winters, wet springs, and hot summer periods. These seasonal changes can place stress on irrigation components if the system is not installed and maintained properly.
In addition to correct pipe depth, homeowners should pay attention to seasonal shutdown procedures, regular inspections, and backflow protection to help ensure reliable performance throughout the year.
Professional Installation Helps Ensure Proper Depth
Determining the correct pipe depth is only one part of a successful irrigation installation.
Professional contractors evaluate soil conditions, property layout, drainage patterns, water pressure, and system design before digging begins. This helps ensure pipes are installed at appropriate depths throughout the property.
A properly installed irrigation system can reduce the risk of future repairs, improve watering efficiency, and help protect your investment for years to come.
Frequently Asked Questions
1. How deep should irrigation pipes be buried in Ohio?
Most residential irrigation pipes in Ohio are typically buried 8 to 12 inches deep, while main lines are often installed between 12 and 18 inches, depending on the system design.
2. Do irrigation pipes need to be below the frost line in Ohio?
No. Most irrigation systems are winterized before freezing weather arrives, so they are generally not buried below the frost line.
3. Can shallow irrigation pipes cause problems?
Yes. Pipes that are too shallow are more likely to be damaged by landscaping, aeration, and other yard activities, which can lead to leaks and costly repairs.
